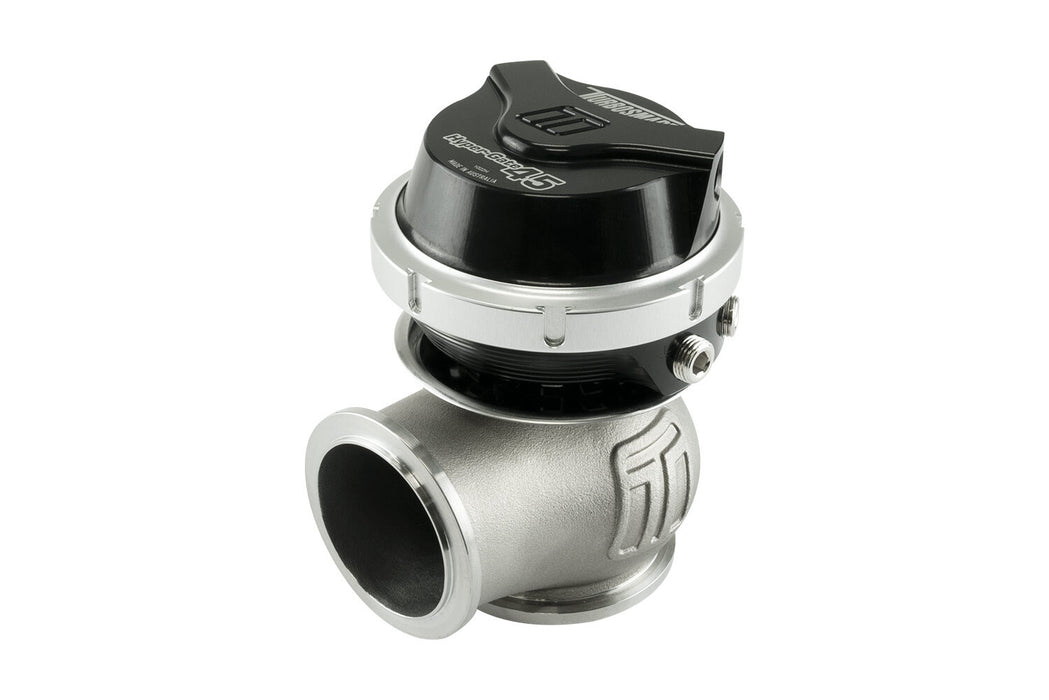

Turbosmart GenV WG45 HyperGate45 7psi Black

The GenV WG45 HyperGate45 External Wastegate is a Motorsport-proven, cost-effective 45mm external wastegate – The highest flowing gate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management; the GenV Range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Available In

Black, Blue, Red, Purple and Sleeper colours

Wastegate Position Sensor Optional Upgrade

Compressed Gas / Co2 Version

Motorsport / Extreme Temp Version

Electronically Actuated / eWG Version

High Pressure (Up to 50psi Base) Version

Features

Class Leading Thermal Performance

Class Leading CFD & Bench Validated Flow Performance

Class Leading Fatigue Resistance

Optional Liquid Actuator Cooling

Optional Position Sensor Available Seperately

Rotatable / Clock-able Actuator Housing

Nitronic 60 Valve Guide & High Temp 347 SS Body

17-7 PH Stainless Steel Springs

Strap Type V-band clamps
