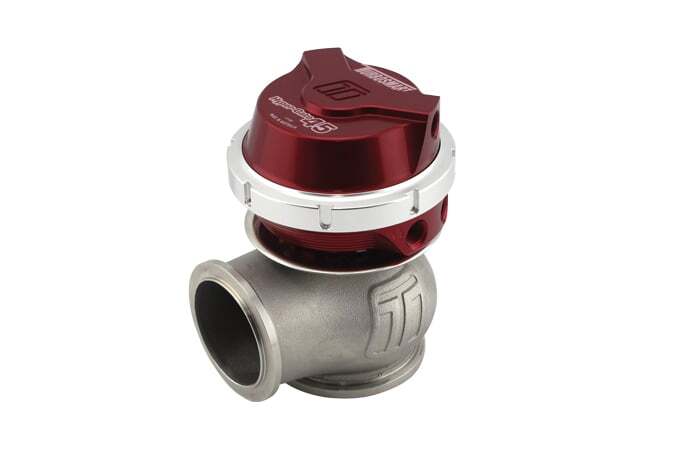

Turbosmart GenV WG45 HyperGate45 14psi Red

The GenV WG45 HyperGate45 External Wastegate is a Motorsport-proven, cost-effective 45mm external wastegate – The highest flowing gate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.




The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management; the GenV Range has more features, options and performance than any other gate.




A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.




Available In


Black, Blue, Red, Purple and Sleeper colours


Wastegate Position Sensor Optional Upgrade


Compressed Gas / Co2 Version


Motorsport / Extreme Temp Version


Electronically Actuated / eWG Version


High Pressure (Up to 50psi Base) Version




Features


Class Leading Thermal Performance


Class Leading CFD; Bench Validated Flow Performance


Class Leading Fatigue Resistance


Optional Liquid Actuator Cooling


Optional Position Sensor Available Separately


Rotatable / Clockable Actuator Housing


Nitronic 60 Valve Guide; High Temp 347 SS Body


17-7 PH Stainless Steel Springs


Strap Type V-band clamps
